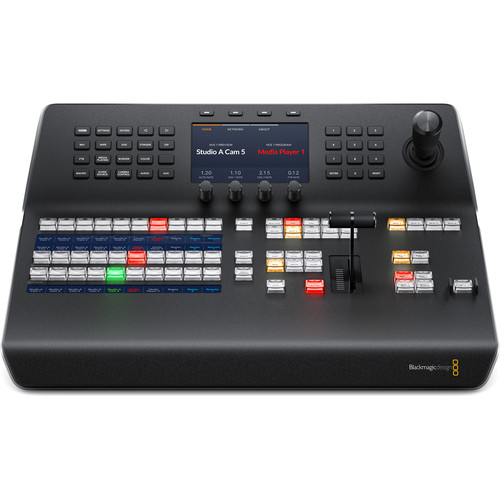

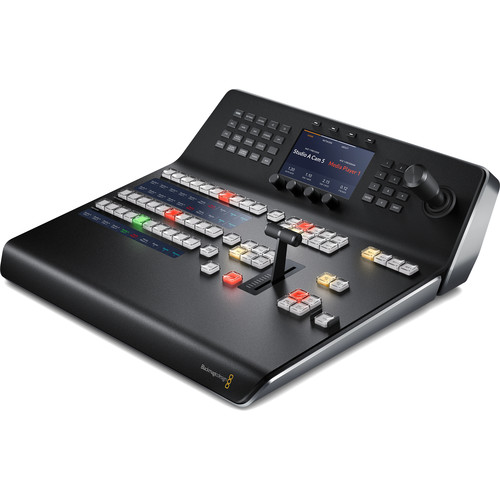

• Control Panel for ATEM Switchers
• Large Info LCD with Rotary Encoders
• Soft-Touch Menu Buttons
• Programmable Color-Backlit Buttons
• LCD Scribble Strips for Buttons
• Weighted T-Bar
• Joystick for DVE and Camera Adjustment
• Control up to 20 Inputs

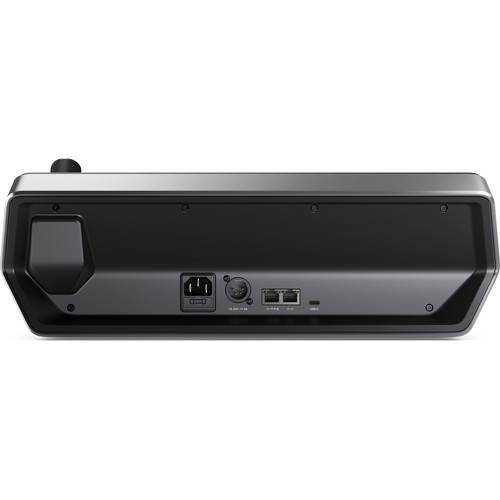

Connections

Ethernet

2 x 10/100/1000 BaseT with loop
output for additional control panels or computers

Software Updates

1 x USB-C for firmware updates

Product Specifics

Direct Cross Points

10

Shifted Cross Points

20

Crosspoint Button Type

Tri-Color LED

Crosspoint Label

3 rows 24 character LCD

On-Air indicator

4

Power Status Indicators

None

DSK Transition Selectors

Auto, Cut, Tie/Preview.

Preview Transition

1

Transition Rate Displays

Via main menu

LCD Menu Displays

3

Menu Control

20 buttons

Dedicated Macro Buttons

10

Multi Control Buttons

None

Destination Bus

1

Source Select Bus

1

Fader Bar

1

3 Axis Joystick

1

Numeric Keypad

1

Software

Software Applications

ATEM Software Control Panel.

Power Requirements

Input Voltage

1 x Internal 100 - 240V AC.

Redundant Power

Yes

Power Usage

45W

Physical Specifications

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

Up to 95%

What's Included

ATEM 1 M/E Advanced Panel 10

Warranty

12 Month Limited Manufacturer's Warranty.
