• Panel for BMD ATEM Switchers
• High-Quality Buttons / Knobs / Controls
• 2 x M/E Rows with 20 x Buttons per Row
• 2 System Control LCDs, Control 4 M/Es
• 4 x Gigabit Ethernet Loop Output
• Custom Labeling, Redundant Power Supply
• 8 x On-Air Indicators, 20 x Cross Points
• 3-Axis Joystick, Keypad, 2 x Faders
• USB Type-C Input for Firmware Updates

Connections

Ethernet

4 x 10/100/1000 BASE-T with loop outputfor additional control panels or computers.

Software Updates

1 x USB-C for firmware updates.

Product Specifics

Number of Mix Effects Rows

2

Direct Cross Points

20

Shifted Cross Points

40

Crosspoint Button Type

Tri-Color LED

Crosspoint Label

6 rows 24 character LCD

On-Air indicator

8

Power Status Indicators

None

DSK Transition Selectors

2 x Auto, Cut, Tie/Preview

Preview Transition

2

Transition Rate Displays

Via main menu

LCD Menu Displays

2

Menu Control

2 x 20 buttons

Dedicated Macro Buttons

2 x 20

Transport Control Buttons

8

Destination Bus

2

Source Select Bus

2

Fader Bar

2

3 Axis Joystick

1

Numeric Keypad

1

Software

Software Applications

ATEM Software Control Panel.

Power Requirements

Input Voltage

2 x Internal 100 - 240V AC.

Redundant Power

Yes

Power Usage

100W

Physical Specifications

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

Up to 95%

What's Included

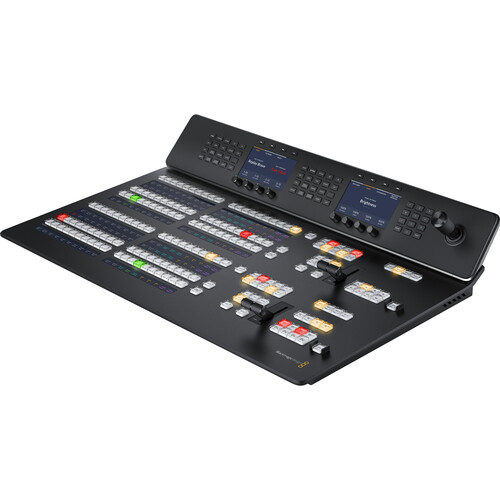

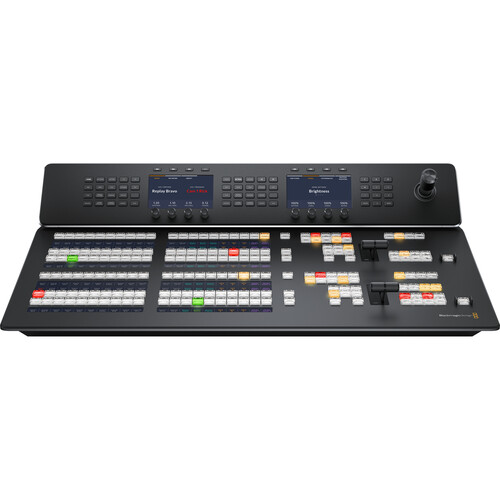

ATEM 2 M/E Advanced Panel 20

Warranty

12 Month Limited Manufacturer’s Warranty.
