• Panel for ATEM Constellation Switcher
• High-Quality Buttons / Knobs / Controls
• 4 M/E Rows, 40 Input Buttons Each Row
• 24 Independent, 4 System Control LCDs
• 4 x Gigabit Ethernet Loop Output
• Custom Labeling, Redundant Power Supply
• 20 On-Air Indicators, 40 Cross Points
• 3-Axis Joystick, Keypad, 4 Fader Bars
• USB Type-C Input for Firmware Updates

Connections

Ethernet

4 x 10/100/1000 BaseT with loop outputfor additional control panels or computers.

Software Updates

1 x USB-C for firmware updates.

Product Specifics

Number of Mix Effects Rows

4

Direct Cross Points

40

Shifted Cross Points

80

Crosspoint Button Type

Tri-Color LED

Crosspoint Label

10 rows 24 character LCD

On-Air indicator

20

Power Status Indicators

None

DSK Transition Selectors

4 x Auto, Cut, Tie/Preview

Preview Transition

4

Transition Rate Displays

Via main menu

LCD Menu Displays

4

Menu Control

4 x 20 buttons

Dedicated Macro Buttons

4 x 40

Transport Control Buttons

24

Destination Bus

4

Source Select Bus

4

Fader Bar

4

3 Axis Joystick

1

Numeric Keypad

1

Software

Software Applications

ATEM Software Control Panel.

Power Requirements

Input Voltage

2 x Internal 100 - 240V AC.

Redundant Power

Yes

Power Usage

250W

Physical Specifications

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

Up to 95%

What's Included

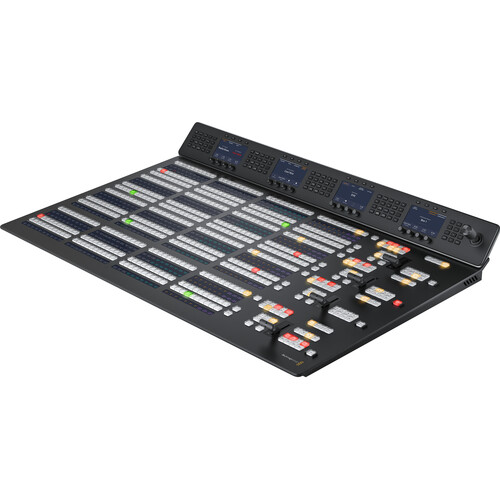

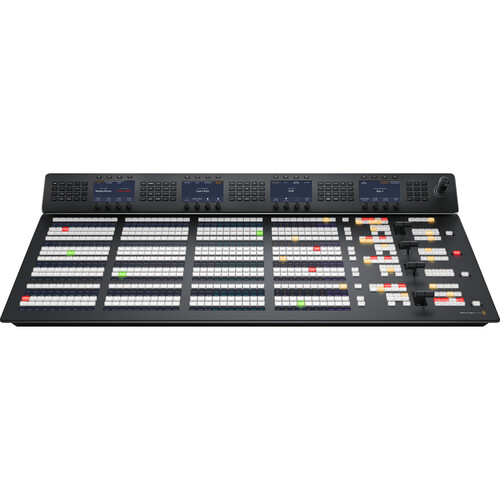

ATEM 4 M/E Advanced Panel 40

Warranty

12 Month Limited Manufacturer's Warranty.
