• 2 x 4K SDI Input
• 1 x HDMI Type A and 1 x SDI Output
• Supports SD, HD, UHD 4K & DCI 4K Signals
• Automatic Input Signal Detection
• 24-Bit, 48 kHz Audio
• Analog & AES-EBU Digital Audio Outputs
• De-Embeds Audio from SDI

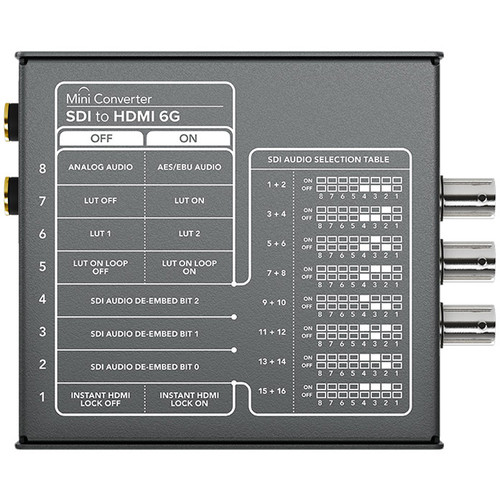

• Settings via Mini Switches or Software
• USB 2.0 Port for Firmware Updates
• 12V Universal Power Supply Included

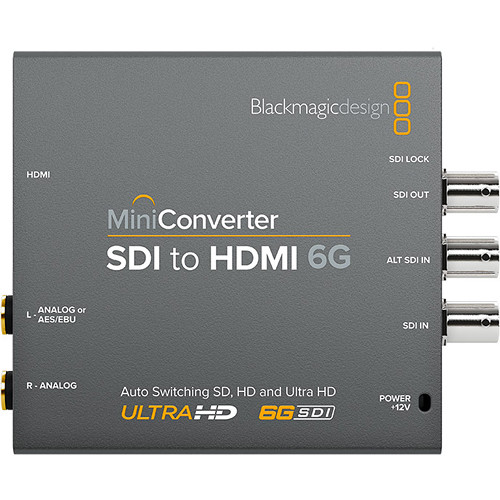

Connections

SDI Video Inputs

1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.

SDI Video Outputs

1 x SDI Video Loop Output.

HDMI Video Outputs

HDMI type A out.

Analog Audio Outputs

2 channels of balanced analog audio.

Digital Audio Outputs

4 channels of AES/EBU digital audio

SDI Redundant Input

Automatically switches over if main SDI input is lost.

Multi Rate Support

Auto detection of SD, HD or 6G‑SDI.

Updates and Configuration

USB

Reclocking

Yes

Standards

SD Video Standards

625i50 PAL, 525i59.94 NTSC

HD Video Standards

720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60

2K Video Standards

2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

4K Video Standards

4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601

SDI Video Rates

SDI video inputs are automatically detected between standard definition and high definition.

SDI Video Sampling

4:2:2 and 4:4:4

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24 bit.

SDI Color Precision

4:2:2 and 4:4:4

SDI Color Space

YUV and RGB

SDI Auto Switching

Automatically detects SD, HD or 6G‑SDI.

HDMI Video Standards

625i50 PAL, 525i59.94 NTSC, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

HDMI Color Space

YUV and RGB

HDMI Color Precision

4:2:2 and 4:4:4

Software

Software Control

Mac OS and Windows software upgrade via USB.

Internal Software Upgrade

Via included updater application.

Settings Control

Mini Switches or USB software.

Power Requirements

+12V universal power supply included with international socket adapters for all countries. Cable tie point.

Operational Voltage Range

12 ‑ 18V DC

Power Consumption

5.2 Watts

Physical Specifications

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

What's Included

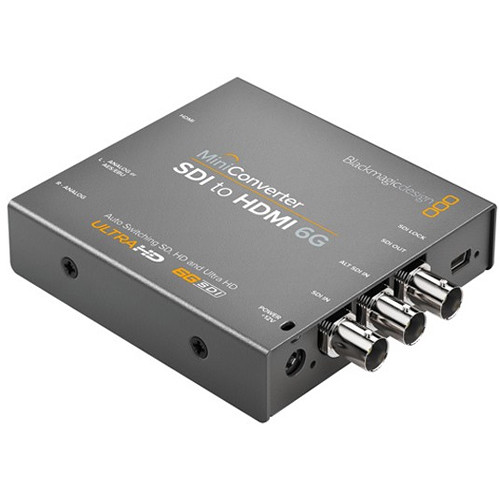

Mini Converter SDI to HDMI 6G

12V universal power supply with international socket adapters

Warranty

3 Year Limited Manufacturer's Warranty.
