• Live Stream 4K Video to Internet
• Input 12G/6G/3G-SDI Video up to UHD 4K
• SDI/HDMI Monitor Output up to 1080p60
• Supports H.264/RTMP Streaming Protocol
• Use USB Type-C as Webcam or 5G/4G Tether
• SDI Loop Output, 10/100/1000 Ethernet
• Redundant AC and DC Power Inputs
• Mac, Win, Linux & Chromebook Compatible
• Works with ATEM Streaming Bridge Option

Traditional broadcast transmitters are critical equipment in a television station, however now the streaming server is just as critical because millions of viewers can be watching globally! To help, Blackmagic Web Presenter includes a feature rich technical monitoring output. The graphics based monitoring output includes a video view, audio meters with accurate ballistics, trend graphs for codec data rates and cache fill, plus a summary of the streaming settings and detailed SDI technical information. Plus the technical monitoring output works in full 1080 HD and outputs to both SDI and HDMI. That means you can use an SDI router for monitoring multiple units, or connect a simple HDMI TV!

1. Streaming Status

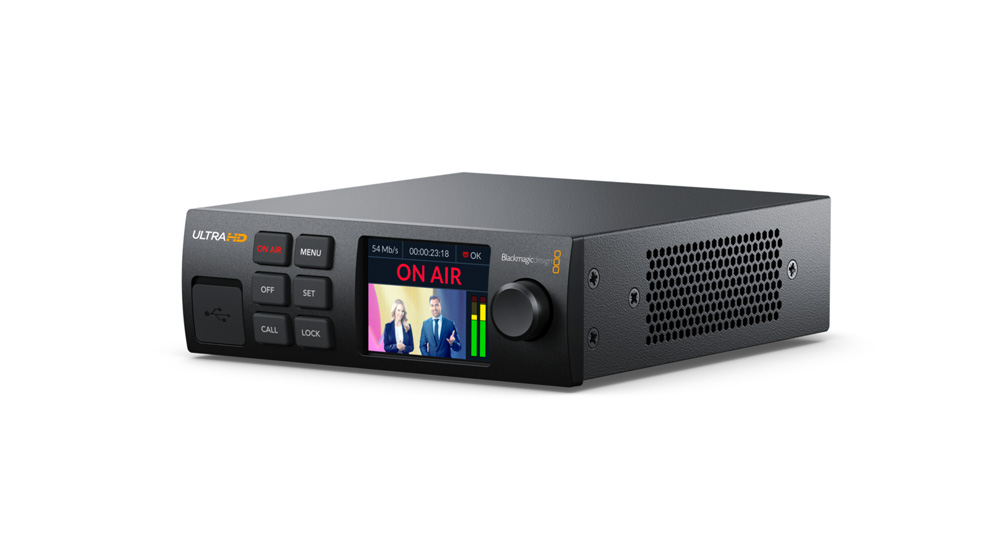

There's a very large ON AIR indicator on the top left of the monitor output, so it’s always clear when you are online and streaming! Plus all your current streaming settings are displayed clearly.

2. Video Input Status

The SDI input technical details are displayed, such as video standard and ancillary data. The bit activity indicators let you see the quality and bit depth of video before H.264 encoding.

3. Audio Input Status

Audio is de-embedded from the SDI input and the channel status is displayed. The bit activity indicator lets you check for 16, 20 or 24 bit audio. You can even see which audio channels are present!

4. Video and Audio History

The audio and video technical displays also include a 6 second history display so you can see the recent video input history. This ensures you can instantly see what’s been happening.

5. Trend Graphs

The trend graphs below the video display let you see the last 60 seconds of codec data rate and cache fill. Plus codec data rate is critical for ensuring you have enough internet speed from your ISP!

6. Video and Audio Meters

A large area is dedicated to the video input display, and the large multi segment audio meter with accurate ballistics. You can even change the type of audio meter from VU, PPM and more!
