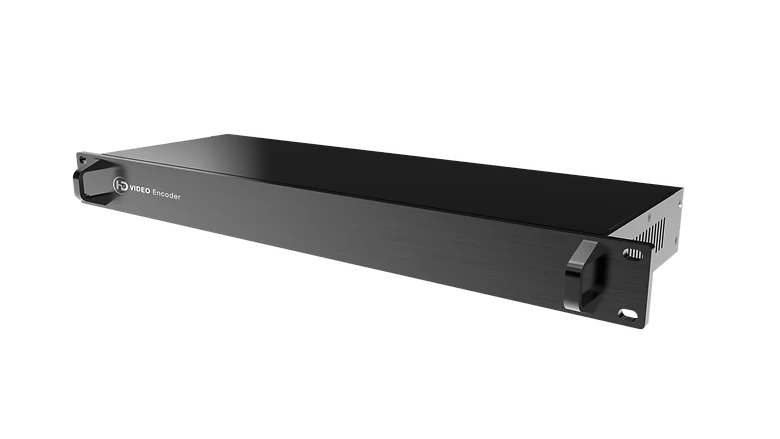

The rack-mounted encoder refers to an integrated single--, quad-, or multi-channel SDI/HDMI video encoding module in a rack-mount frame through a plug-in card. Through wired network to realize remote video transmission / live broadcast.

• Rack-mounted structure

• 1CH/4CH input

• 1080p HD live broadcast

• Branded chip

• Low bandwidth transmission

• 24 hours working

Highly integrated, low power consumption, stable operation.

• It can integrate a 3U multi-channel SDI/ HDMI video encoding module and supports up to 4 channels in a 1U rack. SDI encoding module and HDMI encoding module can be integrated into the same rack for customization.

• Advanced low-power consumption design (20w only for 4 channels at full load), together with a built-in intelligent cooling device, it can ensure stable operation, making 24-hour continuous working available.

With high bandwidth adaptability, it can transmit high-definition, low-latency images without padding even under a low-bandwidth network environment.

• Good video image can be achieved at 1Mbps@720p, and 1.5Mbps@1080p network. In the normal scene, 1Mbps@720p, and 1.5Mbps@1080p can get high-quality video quality.

• Advanced video buffering technology and FEC technology ensure video encoding delay ≤ 67ms★ and transmission stability without non-padding.

• Adjustable bit rate from 64kbit/s～40Mbit/s.

Powerful streaming media service function, all types of streaming media protocol supported.

• RTP/ RTSP/ RTMP/ HLS/ TS/ Onvif/ SIP/ NDI (Customization available)

• SRT supported to ensure secure and reliable transmission.

• Dual stream output, the main code rate up to 1080p60Hz, and the sub-stream supports 720p 60Hz video encoding, output resolution can be self-defined.
