• 5K 16.6MP Stacked Full-Frame Sensor
• 5K60 Open Gate (3:2) & 4K120 (16:9)
• Internal X-OCN Raw Recording
• Three Base ISO | Dual Gain Mode
• 3.5" 16:9 4-Axis Multi-Angle Touchscreen
• AI-Powered Autofocus & White Balance
• 5-Axis In-Body Image Stabilization
• BIG 6 Menu System & Streamlined Controls
• Dual CFexpress Type A/SDXC Card Slots
• XLR-H2 XLR Handle Unit | Optional EVF

Built for professional sets

Expandability and workflow

Cinema-class image quality

5K full-frame fully-stacked Exmor RS™ CMOS sensor for speed, detail and latitude

The full-frame stacked Exmor RS CMOS sensor enables fast readout for high-resolution, high-frame-rate recording. Wide latitude and low noise ensure smooth gradation and natural textures, even in high-contrast scenes.

BIONZ XR2™ with integrated AI processing for enhanced shooting support

The BIONZ XR2 engine delivers dramatic improvements in image, sound, communication, operation, and more. Built-in AI processing enables enhanced subject recognition11 and deep learning-based Auto Tracing White Balance (ATW), helping you shoot with confidence.

Open Gate12 and other image scan modes13

The FX5 offers full-frame Open Gate recording12—a first14 in the Cinema Line FX series. With 5K up to 60fps (FF 3:2), 4K up to 120fps (FF crop)15 and more, it gives you the freedom to adjust framing, speed and workflow to realise even the most ambitious vision.
[1] X-OCN [2] Other codecs [3] FPS [4] Project Frame Rate [5] Fixed

Internal X-OCN compressed RAW video recording

Capture 16-bit scene-linear X-OCN internally 161718 eliminating the need for an external RAW data recorder. With LT, C1 and C2 codecs, you can balance image quality, file size and RAW workflow flexibility to suit the production.

Three Base ISO settings for effective noise control in any environment

Three Base ISO settings—a standard ISO 800, a mid-sensitivity ISO 4000, and a high-sensitivity ISO 1280019 for low light—are available to match your shooting environment. Capture clean shadows and wide latitude across varied lighting conditions, for consistently stunning clarity.

15+ stops of latitude20 for low-noise shadow detail

Wide latitude helps capture highlight and shadow detail with smooth, natural gradation. Low shadow noise preserves clarity, texture and atmosphere, letting you push your creative grading choices further.

Dual Gain Shooting debuts in the Cinema Line FX camera series14

Dual Gain Shooting maximises latitude while reducing noise to enhance shadow details21. Making full use of the sensor's capability, it delivers smooth, natural gradients for greater editing flexibility.

High-frame-rate capture, including 5K at up to 60fps22

The FX5 records up to 5K at 60fps and 4K at 120fps, giving creators the power to capture fast-paced action with impressive detail and clarity. 5K 120p and 4K 240p coming in firmware V2.0, planned to be available in August 2027 or later.

Precise, reliable AF and tracking with AI-based subject recognition

With built-in AI processing, the BIONZ XR2 engine accurately recognises human, animal and bird eyes (Real-time Eye AF)11. Fast Hybrid AF uses up to 759 points23 to ensure accurate focus and tracking that keeps up with quick-moving subjects, even in dark scenes and when shooting with a shallow depth of field.

Built-in de-squeeze for anamorphic shooting

Built-in de-squeeze support makes anamorphic shooting easier on set. With 1.3x, 1.5x, 1.6x, 1.8x and 2.0x settings, the FX5 works smoothly with a wide range of anamorphic lenses.

Deep learning-based illumination estimation

Deep-learning-based illumination estimation achieves unprecedented Auto Tracing White Balance (ATW) accuracy, even in challenging scenes. It delivers accurate colour reproduction even under lighting conditions that previously tended to cause colour cast.

S-Cinetone™ for a refined cinematic look

S-Cinetone brings Sony cinema colour science to the FX5, delivering natural skin tones, smooth gradation and a polished look straight out of camera.

Wide-gamut colour for more grading control

With colour gamuts exceeding both BT.2020 and DCI-P3, S-Gamut3 and S-Gamut3.Cine retain broad colour information for more precise grading and easier colour matching with VENICE 2 in multi-camera shoots.

Three S-Log3 modes for flexible workflows

From cinematic shoots to run-and-gun, choose Cine EI, Cine EI Quick or Flexible ISO24 to capture imagery with maximum latitude. You can also import up to 16 user LUTs25 allowing you to easily monitor the intended look in real-time.

Built for professional sets

5-axis stabilisation for steadier handheld shooting

A precision stabilisation unit and gyro sensors combine to provide optical 5-axis in-body stabilisation. An enhanced stabilisation unit expands the roll-direction compensation range by up to 2x, effectively reducing handheld roll shake26. The result is a camera that's ideal for handheld shooting. Dynamic active Mode27 adds extra electronic support, and stabilisation data can also be used in post-production28.

Lightweight, compact design for agility on set

The compact flattop body and stable grip are built for comfortable handheld work. Paired with Sony's compact lenses, the FX5 becomes a mobile system for flexible shooting with gimbals, in tight spaces and more.

High-quality 96 kHz / 32bit float audio recording

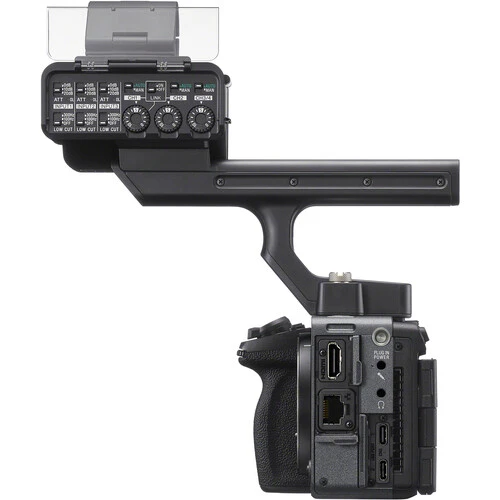

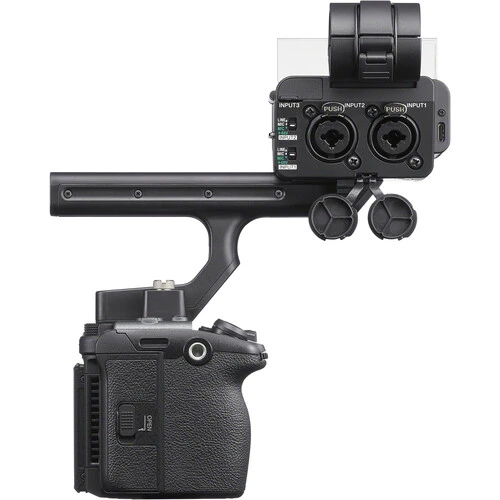

The XLR handle unit29 supports two XLR/TRS inputs, a 3.5 mm stereo mini jack and up to 96 kHz / 32bit float audio. With up to 4 channels of top-quality audio recording, it helps you capture cleaner sound without slowing down the shoot.

Please accept Youtube cookies to watch this video

Access your cookie preferences below and make sure to switch on the Youtube cookie under the 'Functional' section.

Manage cookies

BIG6 (HOME) screen for faster on-set control

Inherited directly from Sony's high-end CineAlta cameras, the BIG6 (HOME) screen displays six essential settings together: frame rate, EI/ISO/Gain, shutter, iris, LUT and white balance. Touch operation, the multi-function dial and Fixed/Variable frame-rate control help you work quickly and efficiently.

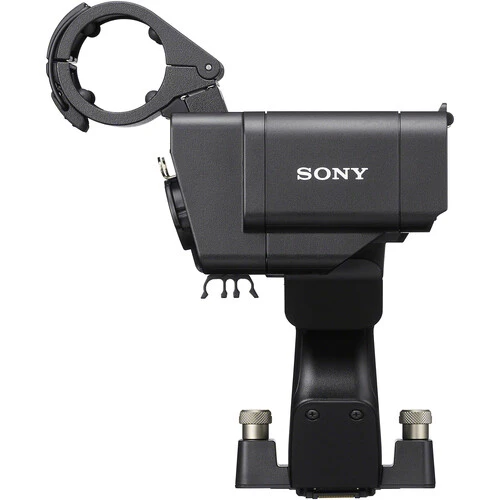

Optional OLED viewfinder DVF-EL1 for easier outdoor monitoring

Add the optional OLED viewfinder30 for enhanced monitoring in bright locations. It features a 0.58-type OLED panel with approx. 7.07 million dots, DCI-P3 equivalent colour gamut, and 10-bit display for superb colour and detail.

Monitoring support for precise shooting

Exposure and focus tools, including Waveform Monitor, Histogram, False Colour, and Focus Map, support faster judgments on set. They help you manage highlights, shadows, skin tones and critical focus with confidence.31

Clear Image Zoom for smoother, more intuitive framing

Clear Image Zoom adds a [Smooth Priority] mode32 that enables seamless zoom from the optical wide end up to 2x digital zoom33. [Optical Zoom Priority] is a zoom mode that prioritises image quality. After the optical zoom reaches its telephoto end, Clear Image Zoom takes over.

Dual CFexpress Type A/SD card slots for flexible media workflows

Dual CFexpress Type A slots34 support relay, simultaneous and separated recording, and they also accept SDXC (UHS-II/UHS-I) cards. Main and proxy files can be recorded to different slots.

Power that keeps pace with long shoots

A high-capacity 2,670 mAh NP-SA10035 battery can provide up to 170 minutes36 of recording time. Optimised power management, faster charging37, USB Power Delivery (PD)38 and battery condition display make day-to-day operation easier.

Uninterrupted 5K/60p39 recording

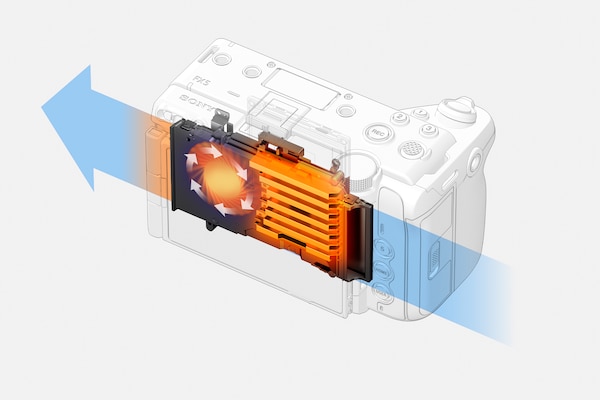

An efficient fan cooling system and advanced design help keep the camera cool, even when the LCD monitor is closed. Three fan modes—[Auto], [Minimum] and [OFF in REC]—let you balance cooling and noise to suit your shooting needs.
